Chinese BWT 133 radio system 1.6 to 29.999MHz modes LSB/USB/UCW/LCW/AM with 100Watt amp tuner and much more

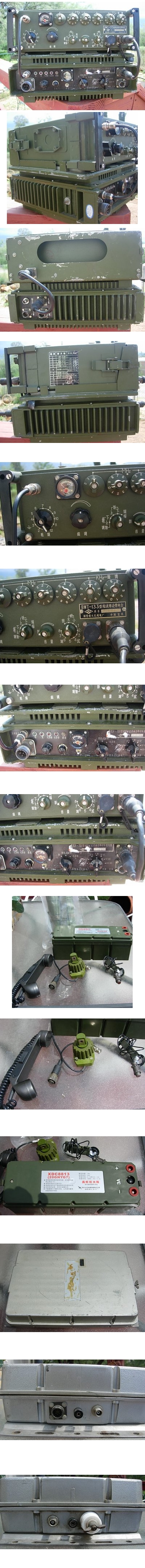

Chinese BWT 133 radio system 1.6 to 29.999MHz modes LSB/USB/UCW/LCW/AM with 100Watt amp tuner and much more, BWT 133 transceiver, (the transceiver covers 1.6 to 29.999MHz modes LSB/USB/UCW/LCW/AM with power output of 2-3 watts and 13-15 watts from built in manual Tuner), requires 24 VDC supply voltage. The TCP 701 HF 100 watt amplifier (takes drive from the BWT 133 via position #12 on the antenna coarse loading and covers the frequency range of 1.6 MHz to 30 MHz all modes) and the matching ATU (designed based on the Icom AT 180 with expanded impedance range and capable of much more power handling) does the rest. The ATU handles both end feed and coax output. The system is almost fully automatic when used as a fixed base, as all that is required is, select tune, enter frequency, push the tune button and hold down until tune light to goes out, and then switch to you mode of operation and go. System comes with mounting tray for R/T all interconnection cables including the amplifier to ATU cable (10 meter length). The only cable you need to make up is the coax cable from the Amplifier to ATU and we supply the BNC connectors, you supply the RG 58 (we really do not know how long a cable set you will require). This system is set up for fixed base operation at 100 watts plus or man pack configuration at 3 watts low power and 13 watts high power modes. With the R/T tray in place one only has to undo 2 latches and remove the R/T snap on the battery box and go man Pac configuration. The system comes with the following extra accessories included in the package price:

3 meter rod antenna and matching swivel base for R/T, new battery box empty, handset, wire antenna 22 meter sloper type, night light for night operations canvas carry bag with shoulder straps for man pac operations.



Everything below is extra, please send request to Scott for availability and additional charges:

What is not included in the above package that you must provide. Power source, 22 to 28 VDC at 20 amps, Batteries for battery box, RG58 coax for feed for the ATU, counterpoise wires for sloper antenna, and throw down wire for man pac operation. We can provide everything listed for an additional price.

Other options that can be provided but are not included are headset (both ears with boom mic and PTT switch), hand key for CW operation, and 44 meter doublet antenna. We can provide a suitable aftermarket power supply 110 VAC source and can make up necessary cables as required.
